Bolinder 1051–1052 gearbox

Illustrated parts plates for the reverse gearbox used with many single- and twin-cylinder four-stroke Bolinders — housing, shafts, and control lever.

These plates come from the historic enthusiast catalogue for the Bolinder gearbox fitted to many 1051 and 1052 marine diesels. Use them with the 1051 engine parts catalogue (PDF) when identifying components or planning pattern parts. Scans are for personal reference and restoration.

Contents, index & notes

Overview plates from the original gearbox catalogue.

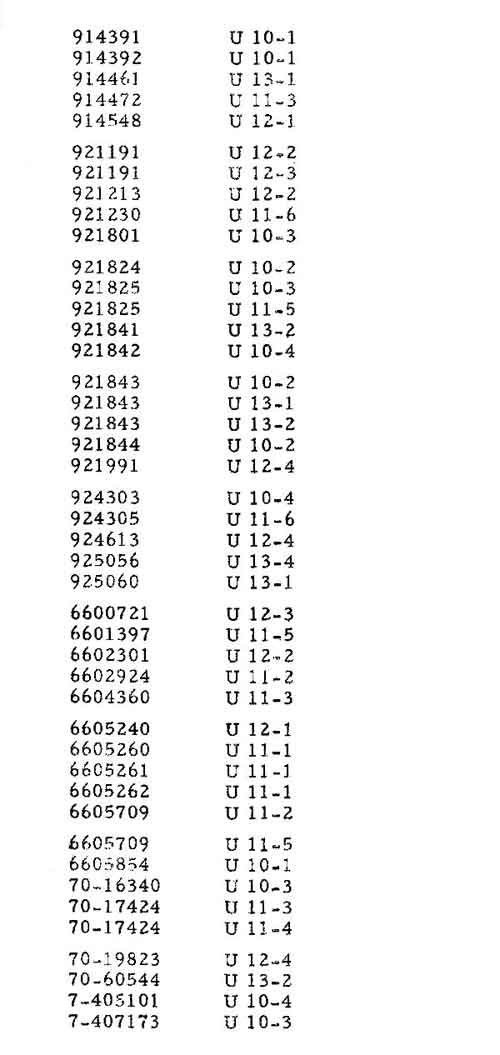

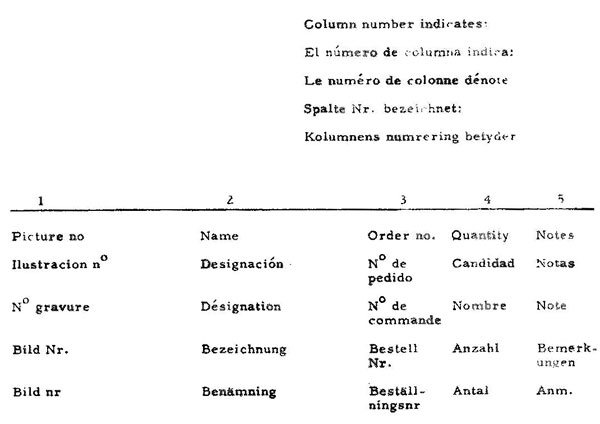

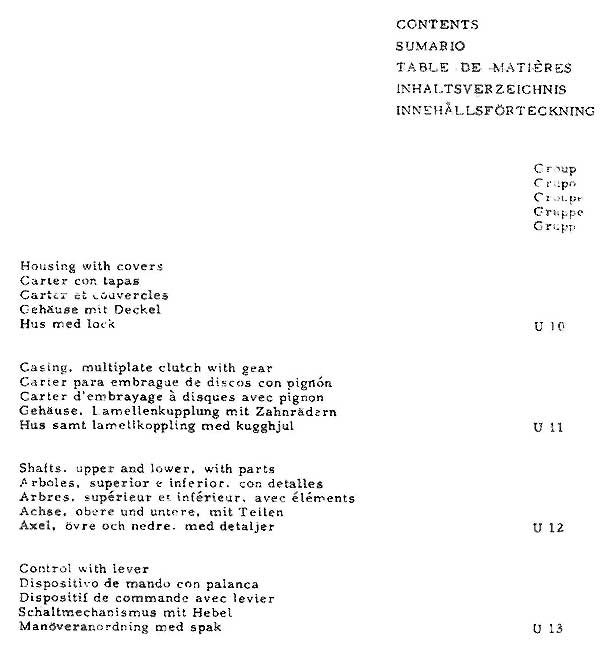

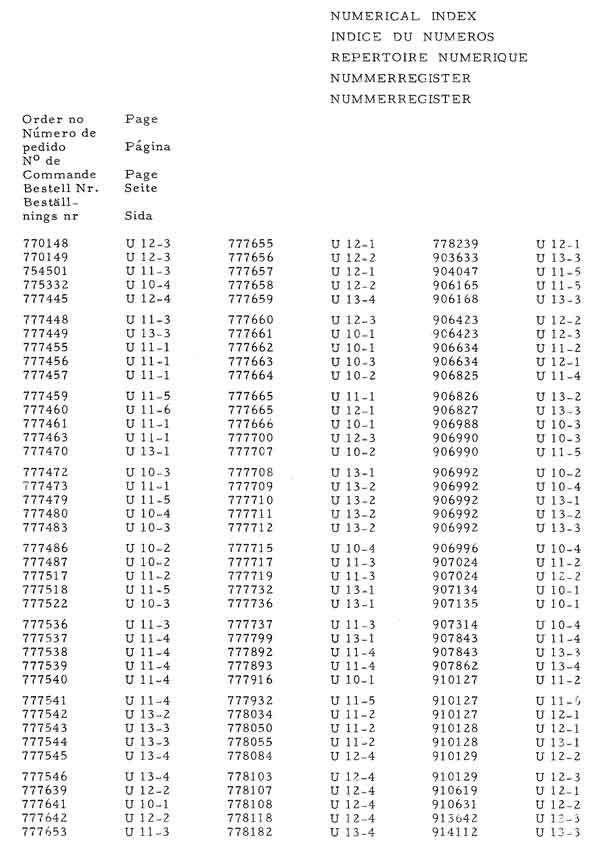

Gearbox catalogue contents plate Gearbox catalogue notes plate Gearbox parts index plate Gearbox parts index continued

Housing with covers

Gearbox housing, covers, and related parts illustrations.

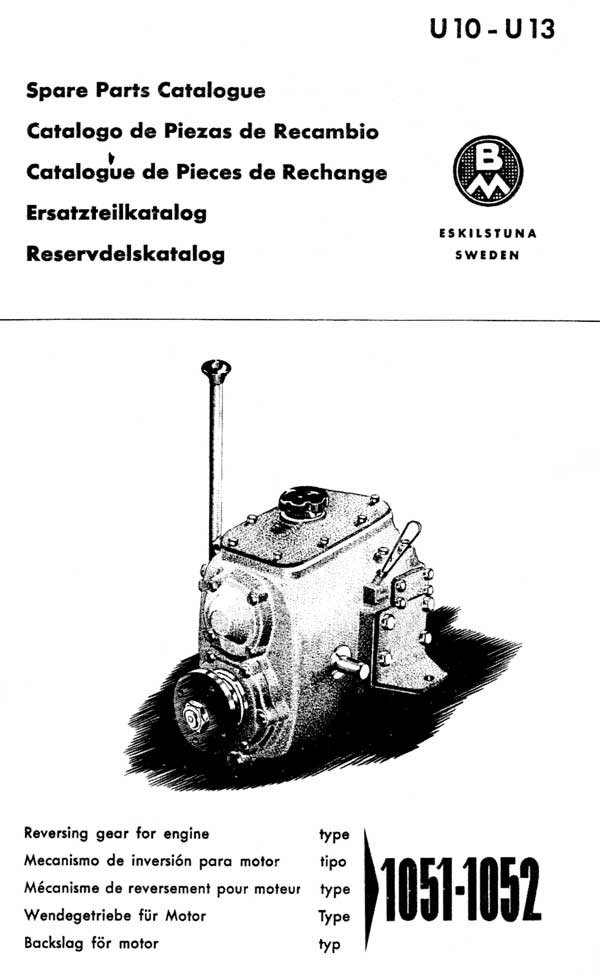

1051-1052 gearbox housing overview plate
Housing group — overview plate (click for larger).

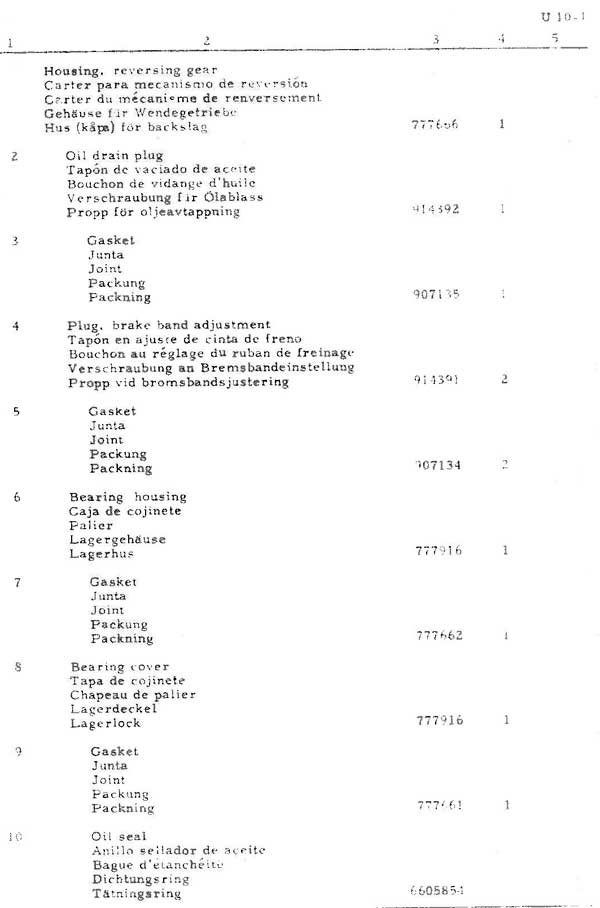

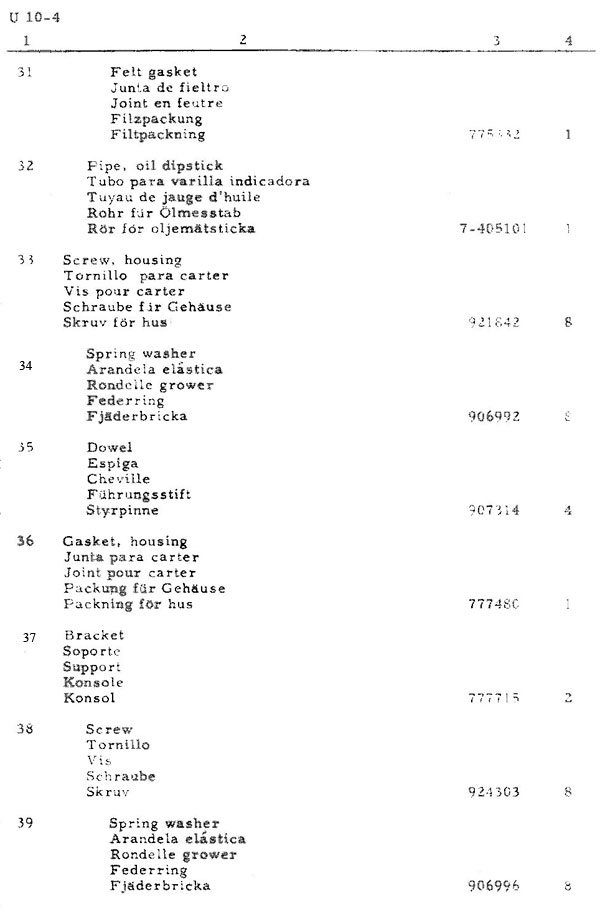

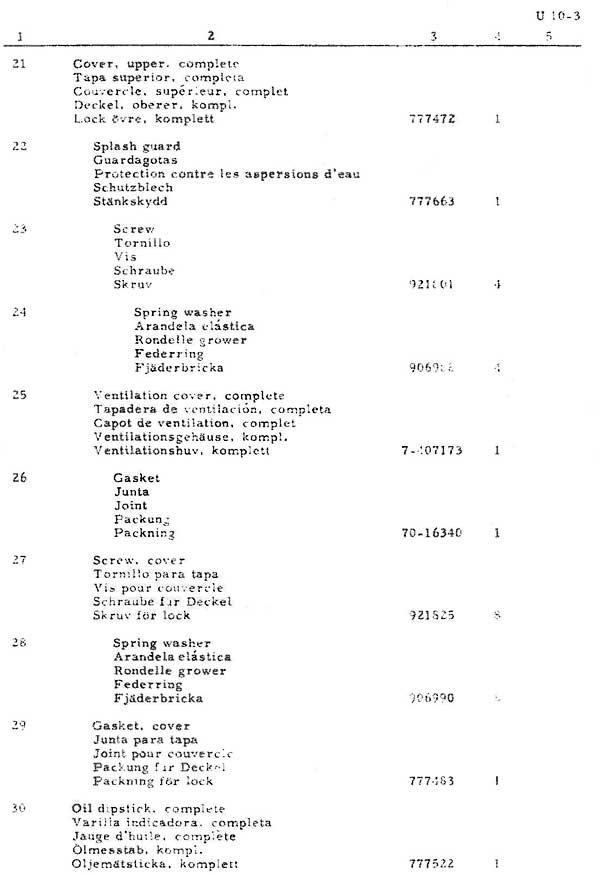

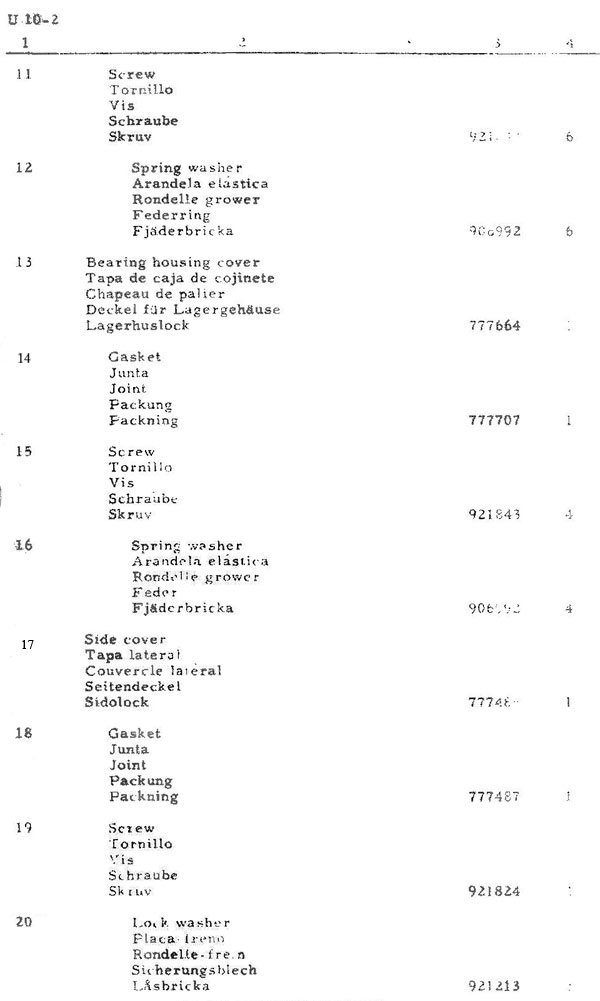

Housing with covers plate Housing parts detail 1 Housing parts detail 2 Housing parts detail 3 Housing parts detail 4

Shafts — upper and lower

Upper and lower shaft assemblies as illustrated in the catalogue.

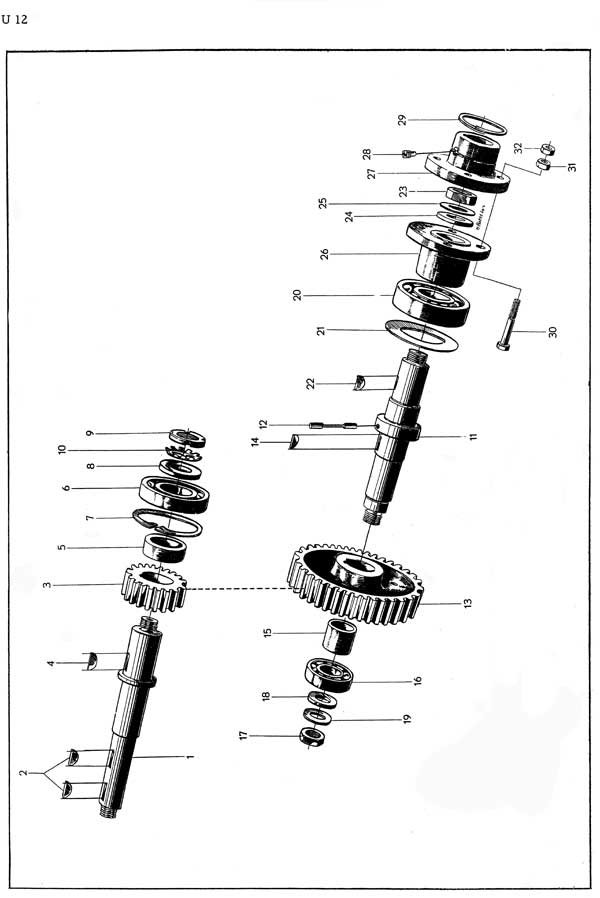

Upper and lower shafts overview plate
Shafts group — overview plate.

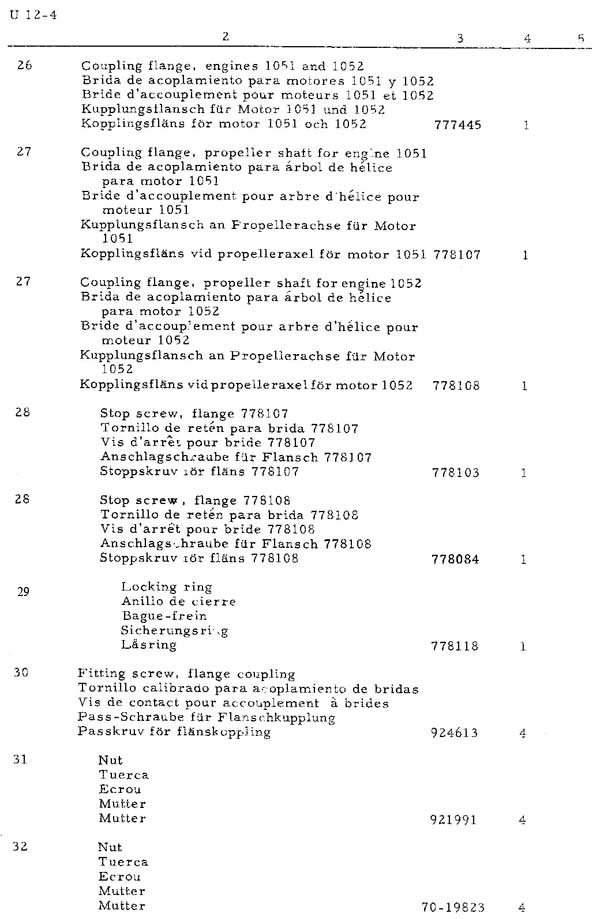

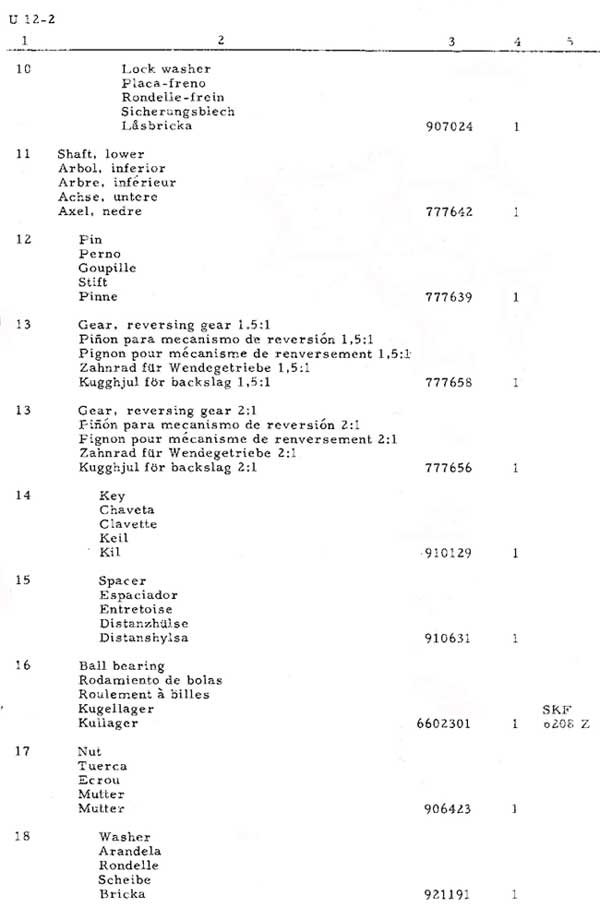

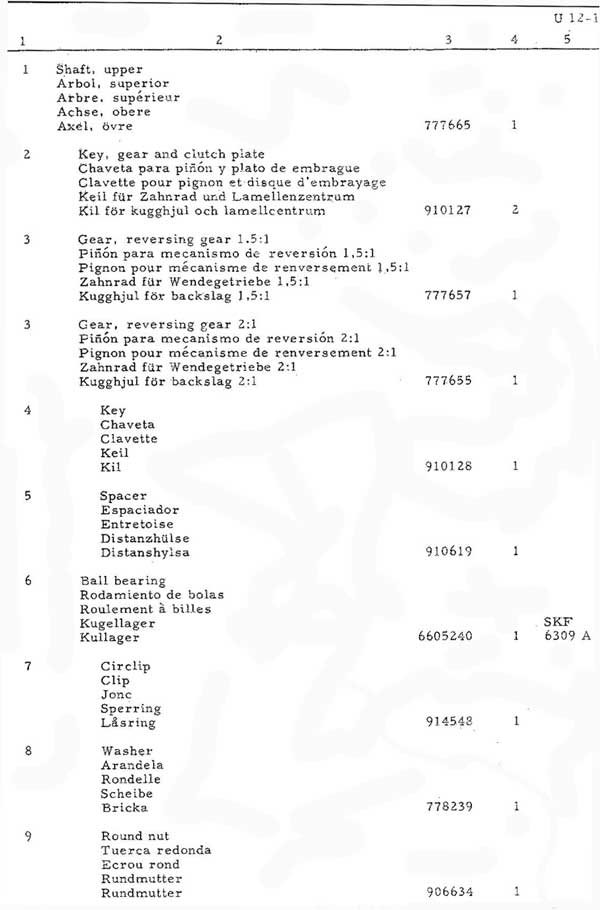

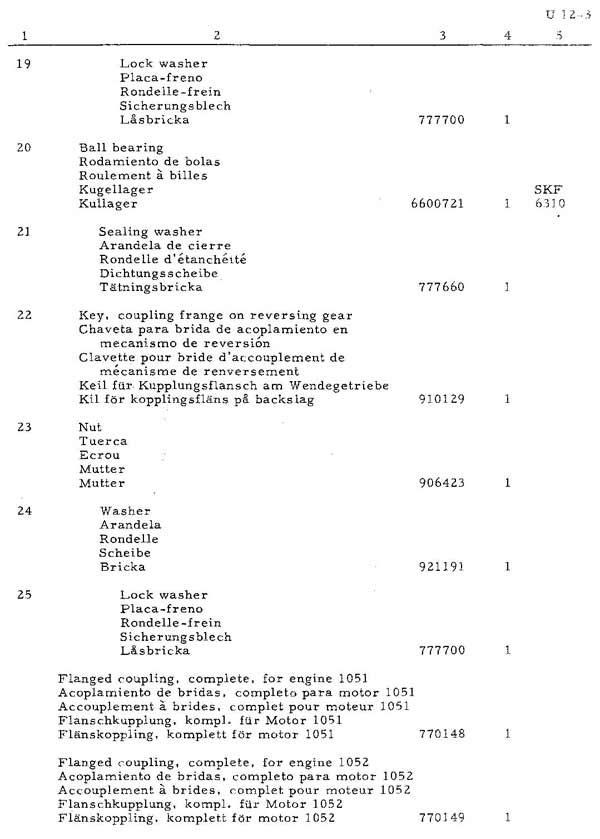

Shafts plate 1 Shafts plate 2 Shafts plate 3 Shafts plate 4

Control with lever

Control linkage and lever assembly plates.

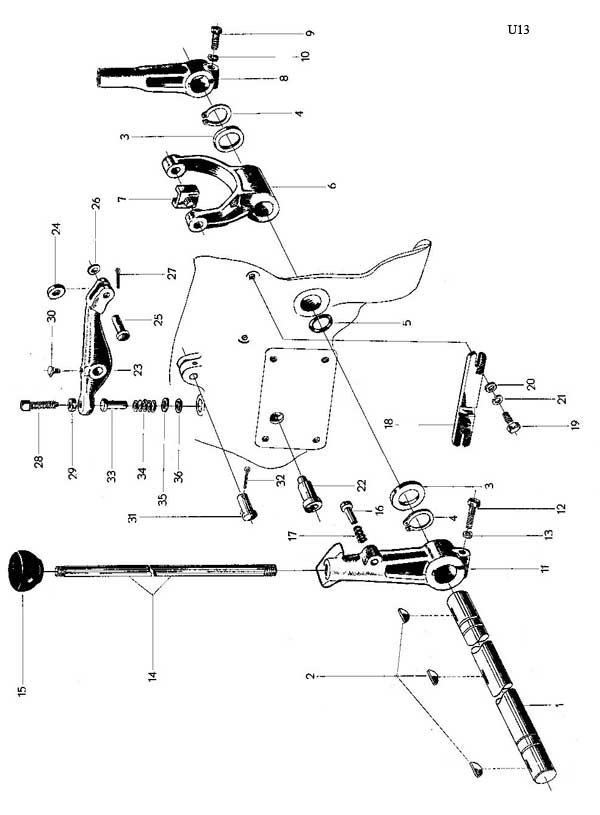

Control with lever overview plate
Control group — overview plate.

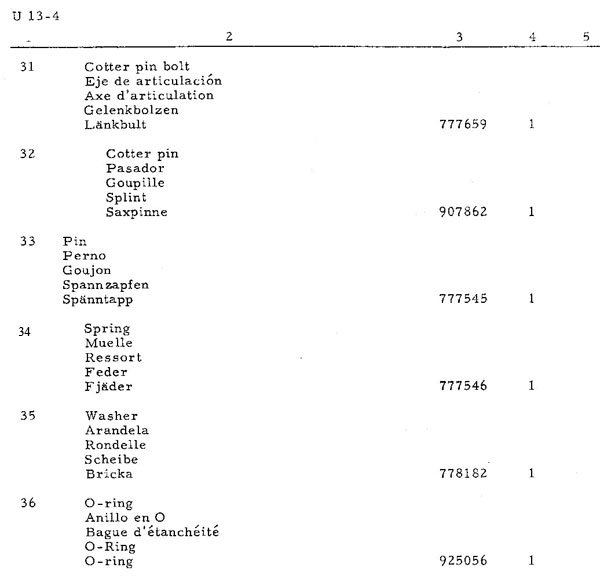

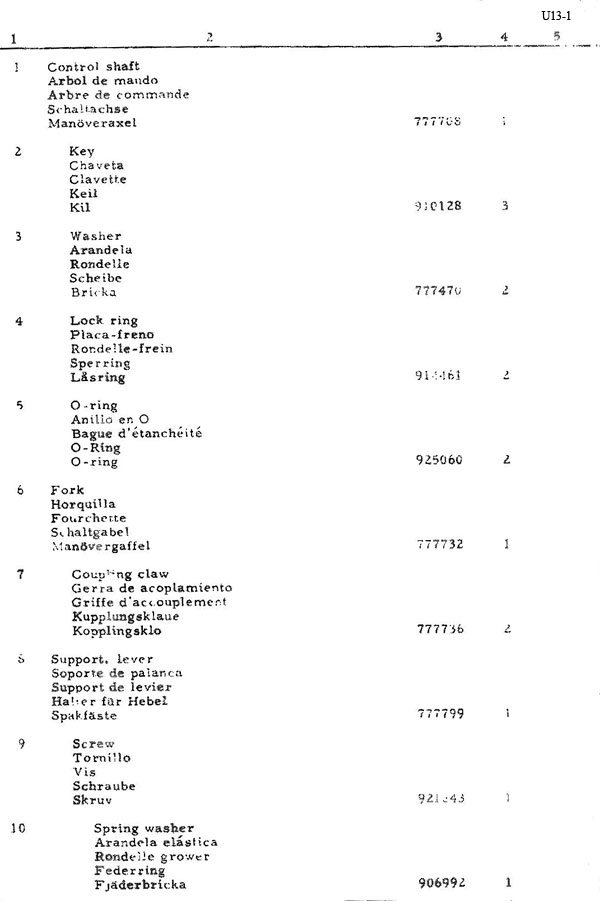

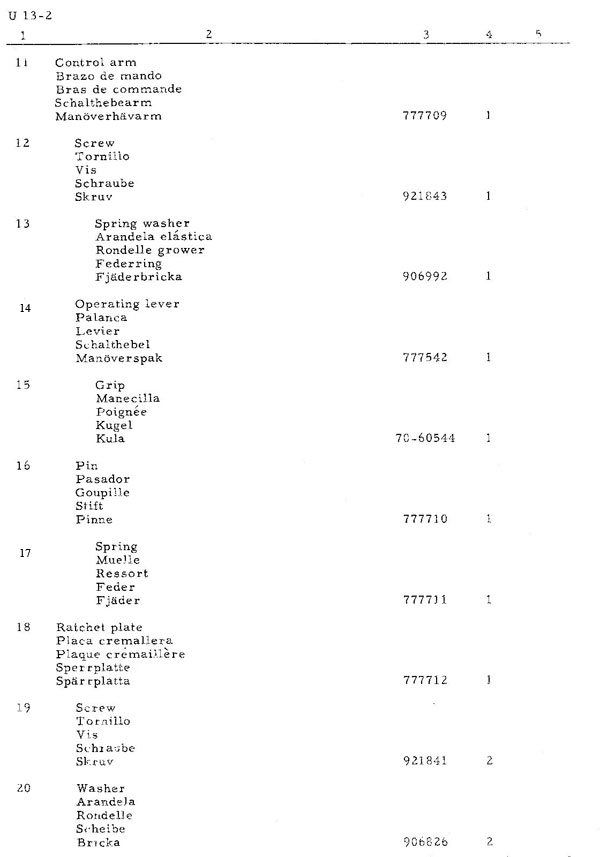

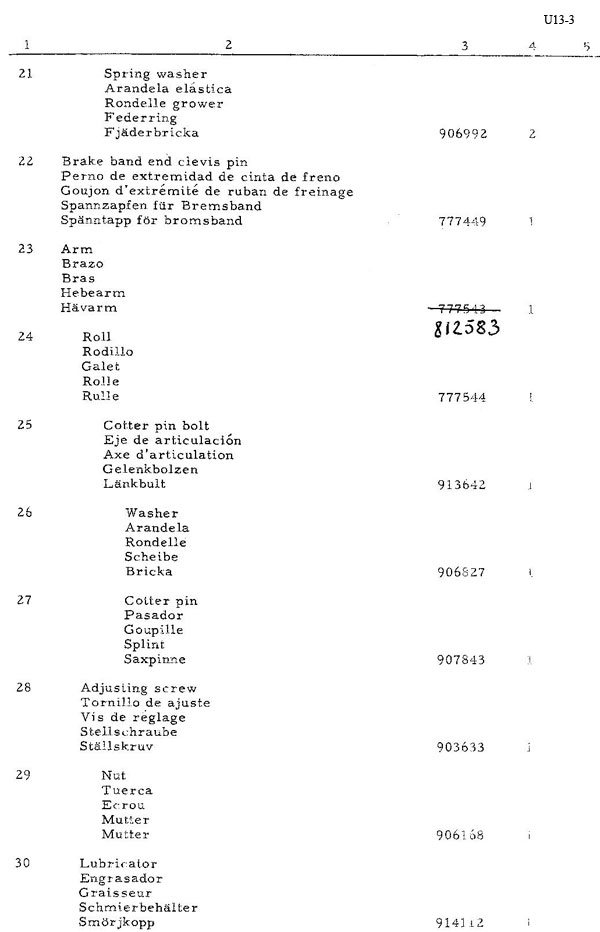

Control lever plate 1 Control lever plate 2 Control lever plate 3 Control lever plate 4

Heritage catalogue scans for personal reference and restoration. Not for resale as a packaged product. Companion engine plates: 1051 parts catalogue PDF.
